A Deep Dive into a Dynamic Unity City Builder Grid System

The Unsung Hero of City-Builders

Every great city-builder — from Anno to Settlers — is powered by an invisible but essential system: the grid system. In Andara, my post-apocalyptic city builder, the grid system isn’t just for placing buildings — it governs terrain height, coastline access, decoration, and even how AI interacts with the world.

For Andara, I needed the grid to:

Handle terrain height and evaluate slope.
Determine buildable vs. non-buildable areas.
Identify valid coastlines for special structures.
Support road networks and prefab rotation.
Allow procedural placement of decor.
Feed clean data to AI and other systems via a NativeArray.

In this post, I’ll walk through the logic and structure behind our grid system, from terrain sampling to dynamic coastline detection.

Core Structure: The GridSystemScript and GridCell

Singleton Access
The GridSystemScript acts as a Singleton, giving other systems (UI, pathfinding, buildings) centralized access.

using System.Collections.Generic;
using UnityEngine;

namespace GridSystem.BlogPost
{
    public class GridSystemScript : MonoBehaviour
    {
        public static GridSystemScript Instance;

        [Header(“Grid Dimensions”)]
        public int width = 50;
        public int height = 50;
        public float cellSize = 1f;

        [Header(“Terrain & Buildability”)]
        [SerializeField] private LayerMask groundLayerMask;
        [Tooltip(“Cells with a height (absolute value) less than this are buildable.”)]
        public float buildableHeightTolerance = 0.5f;
        [Tooltip(“The minimum number of consecutive coastal cells for a valid coastline.”)]
        public int minCoastalRunLength = 3;

        [Header(“Decor Settings”)]
        public GameObject rockPrefab; // For simplicity, we’ll use one rock prefab
        [Range(0, 1)]
        public float rockPlacementProbability = 0.02f;

        private GridCell[,] grid;

        void Awake()
        {
            Instance = this;
            Initialize();
        }

        public void Initialize()
        {
            grid = new GridCell[width, height];

            // — PASS 1: Set basic properties and height-based buildability —
            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    Vector3 cellWorldPos = transform.position + new Vector3(x * cellSize, 0, z * cellSize);
                    float heightSample = GetHeightSample(cellWorldPos);
                    cellWorldPos.y = heightSample;

                    bool isBuildable = Mathf.Abs(heightSample) < buildableHeightTolerance;

                    grid[x, z] = new GridCell(new Vector2Int(x, z), cellWorldPos, isBuildable);
                }
            }
            Debug.Log(“Pass 1 Complete: Basic grid properties and buildability set.”);

            // — PASS 2: Identify all cells adjacent to water —
            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    if (grid[x, z].IsBuildable)
                    {
                        CheckIfPotentiallyCoastal(x, z);
                    }
                }
            }
            Debug.Log(“Pass 2 Complete: Potential coastal cells identified.”);

            // — PASS 3: Validate coastlines by checking for runs —
            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    if (grid[x, z].IsPotentiallyCoastal)
                    {
                        ValidateCoastalRun(x, z);
                    }
                }
            }
            Debug.Log(“Pass 3 Complete: Final coastal properties set.”);

            // — Final Step: Add some procedural decoration —
            PopulateDecor();
        }

        private float GetHeightSample(Vector3 position)
        {
            if (Physics.Raycast(position + Vector3.up * 100f, Vector3.down, out RaycastHit hit, 200f, groundLayerMask))
            {
                return hit.point.y;
            }
            return 0f;
        }

        #region Coastal Generation Logic

        // Pass 2 Helper
        private void CheckIfPotentiallyCoastal(int x, int z)
        {
            GridCell cell = grid[x, z];
            cell.IsPotentiallyCoastal = false;

            Vector2Int[] neighbors = { Vector2Int.up, Vector2Int.down, Vector2Int.left, Vector2Int.right };
            foreach (var dir in neighbors)
            {
                GridCell neighbor = GetCell(x + dir.x, z + dir.y);
                // A “water” cell is one that is NOT buildable.
                if (neighbor != null && !neighbor.IsBuildable)
                {
                    cell.IsPotentiallyCoastal = true;

                    // Store which direction the water is in for Pass 3
                    if (dir == Vector2Int.up) cell.WaterIsNorth = true;
                    if (dir == Vector2Int.down) cell.WaterIsSouth = true;
                    if (dir == Vector2Int.left) cell.WaterIsWest = true;
                    if (dir == Vector2Int.right) cell.WaterIsEast = true;
                }
            }
        }

        // Pass 3 Helper
        private void ValidateCoastalRun(int x, int z)
        {
            GridCell cell = grid[x, z];

            int horizontalRun = GetRunLength(x, z, true);
            int verticalRun = GetRunLength(x, z, false);

            if (horizontalRun >= minCoastalRunLength)
            {
                cell.IsCoastalCell = true;
                // Water is to the North or South
                cell.CoastalRotation = cell.WaterIsNorth ? 0 : 180;
            }
            else if (verticalRun >= minCoastalRunLength)
            {
                cell.IsCoastalCell = true;
                // Water is to the East or West
                cell.CoastalRotation = cell.WaterIsEast ? 90 : 270;
            }
        }


        private int GetRunLength(int startX, int startZ, bool horizontal)
        {
            int count = 0;
            for (int i = -width; i < width; i++) // A simple, wide scan
            {
                int x = horizontal ? startX + i : startX;
                int z = horizontal ? startZ : startZ + i;

                GridCell cell = GetCell(x, z);
                if (cell != null && cell.IsPotentiallyCoastal)
                {
                    count++;
                }
                else if (count > 0) // Stop counting once the run is broken
                {
                    break;
                }
            }
            return count;
        }

        #endregion

        private void PopulateDecor()
        {
            if (rockPrefab == null) return;
            var decorParent = new GameObject(“Decor”).transform;
            decorParent.SetParent(transform);

            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    GridCell cell = grid[x, z];
                    if (cell.IsBuildable && !cell.IsCoastalCell) // Don’t put rocks on the beach
                    {
                        if (Random.value < rockPlacementProbability)
                        {
                            Quaternion randomRot = Quaternion.Euler(0, Random.Range(0, 360f), 0);
                            cell.DecorObject = Instantiate(rockPrefab, cell.WorldPosition, randomRot, decorParent);
                        }
                    }
                }
            }
            Debug.Log(“Decor populated.”);
        }


        // — Public Helper Methods —
        public GridCell GetCell(int x, int z)
        {
            if (x >= 0 && x < width && z >= 0 && z < height)
                return grid[x, z];
            return null;
        }

        // … Other methods for building placement, pathfinding, etc. would go here …

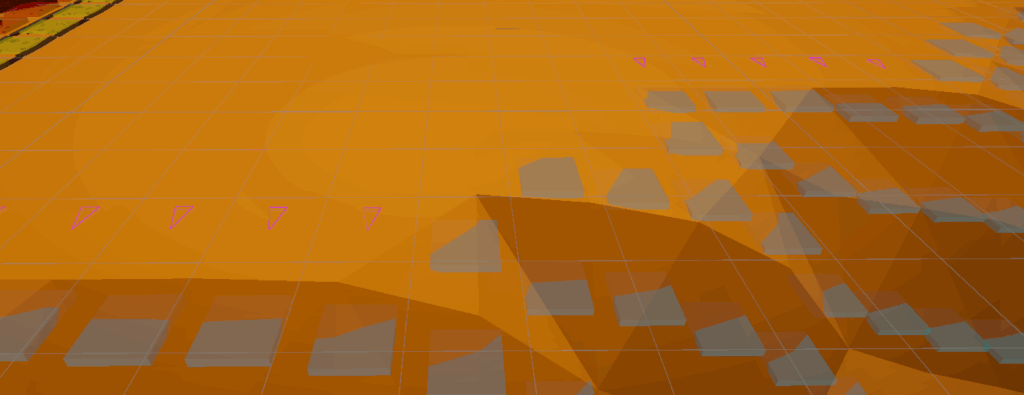

#if UNITY_EDITOR
        void OnDrawGizmos()
        {
            if (grid == null) return;

            foreach (var cell in grid)
            {
                Gizmos.color = Color.green * 0.5f;
                // Simplified Gizmos for clarity
                if (!cell.IsBuildable)
                {
                    Gizmos.color = new Color(0, 0.7f, 1, 0.5f); // Water
                    Gizmos.DrawCube(cell.WorldPosition, new Vector3(cellSize, 0.1f, cellSize));
                }
                else if (cell.IsCoastalCell)
                {
                    Gizmos.color = new Color(1, 0, 1, 0.7f); // Magenta
                    Gizmos.DrawCube(cell.WorldPosition, new Vector3(cellSize, 0.1f, cellSize));
                    // Draw a line to show coastal rotation
                    Vector3 direction = Quaternion.Euler(0, cell.CoastalRotation, 0) * Vector3.forward;
                    Gizmos.DrawRay(cell.WorldPosition, direction * cellSize);
                }
            }
        }
#endif
    }
}

using System.Collections.Generic;
using UnityEngine;

namespace GridSystem.BlogPost
{
    public class GridSystemScript : MonoBehaviour
    {
        public static GridSystemScript Instance;

        [Header("Grid Dimensions")]
        public int width = 50;
        public int height = 50;
        public float cellSize = 1f;

        [Header("Terrain & Buildability")]
        [SerializeField] private LayerMask groundLayerMask;
        [Tooltip("Cells with a height (absolute value) less than this are buildable.")]
        public float buildableHeightTolerance = 0.5f;
        [Tooltip("The minimum number of consecutive coastal cells for a valid coastline.")]
        public int minCoastalRunLength = 3;

        [Header("Decor Settings")]
        public GameObject rockPrefab; // For simplicity, we'll use one rock prefab
        [Range(0, 1)]
        public float rockPlacementProbability = 0.02f;

        private GridCell[,] grid;

        void Awake()
        {
            Instance = this;
            Initialize();
        }

        public void Initialize()
        {
            grid = new GridCell[width, height];

            // --- PASS 1: Set basic properties and height-based buildability ---
            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    Vector3 cellWorldPos = transform.position + new Vector3(x * cellSize, 0, z * cellSize);
                    float heightSample = GetHeightSample(cellWorldPos);
                    cellWorldPos.y = heightSample;

                    bool isBuildable = Mathf.Abs(heightSample) < buildableHeightTolerance;

                    grid[x, z] = new GridCell(new Vector2Int(x, z), cellWorldPos, isBuildable);
                }
            }
            Debug.Log("Pass 1 Complete: Basic grid properties and buildability set.");

            // --- PASS 2: Identify all cells adjacent to water ---
            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    if (grid[x, z].IsBuildable)
                    {
                        CheckIfPotentiallyCoastal(x, z);
                    }
                }
            }
            Debug.Log("Pass 2 Complete: Potential coastal cells identified.");

            // --- PASS 3: Validate coastlines by checking for runs ---
            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    if (grid[x, z].IsPotentiallyCoastal)
                    {
                        ValidateCoastalRun(x, z);
                    }
                }
            }
            Debug.Log("Pass 3 Complete: Final coastal properties set.");

            // --- Final Step: Add some procedural decoration ---
            PopulateDecor();
        }

        private float GetHeightSample(Vector3 position)
        {
            if (Physics.Raycast(position + Vector3.up * 100f, Vector3.down, out RaycastHit hit, 200f, groundLayerMask))
            {
                return hit.point.y;
            }
            return 0f;
        }

        #region Coastal Generation Logic

        // Pass 2 Helper
        private void CheckIfPotentiallyCoastal(int x, int z)
        {
            GridCell cell = grid[x, z];
            cell.IsPotentiallyCoastal = false;

            Vector2Int[] neighbors = { Vector2Int.up, Vector2Int.down, Vector2Int.left, Vector2Int.right };
            foreach (var dir in neighbors)
            {
                GridCell neighbor = GetCell(x + dir.x, z + dir.y);
                // A "water" cell is one that is NOT buildable.
                if (neighbor != null && !neighbor.IsBuildable)
                {
                    cell.IsPotentiallyCoastal = true;

                    // Store which direction the water is in for Pass 3
                    if (dir == Vector2Int.up) cell.WaterIsNorth = true;
                    if (dir == Vector2Int.down) cell.WaterIsSouth = true;
                    if (dir == Vector2Int.left) cell.WaterIsWest = true;
                    if (dir == Vector2Int.right) cell.WaterIsEast = true;
                }
            }
        }

        // Pass 3 Helper
        private void ValidateCoastalRun(int x, int z)
        {
            GridCell cell = grid[x, z];

            int horizontalRun = GetRunLength(x, z, true);
            int verticalRun = GetRunLength(x, z, false);

            if (horizontalRun >= minCoastalRunLength)
            {
                cell.IsCoastalCell = true;
                // Water is to the North or South
                cell.CoastalRotation = cell.WaterIsNorth ? 0 : 180;
            }
            else if (verticalRun >= minCoastalRunLength)
            {
                cell.IsCoastalCell = true;
                // Water is to the East or West
                cell.CoastalRotation = cell.WaterIsEast ? 90 : 270;
            }
        }


        private int GetRunLength(int startX, int startZ, bool horizontal)
        {
            int count = 0;
            for (int i = -width; i < width; i++) // A simple, wide scan
            {
                int x = horizontal ? startX + i : startX;
                int z = horizontal ? startZ : startZ + i;

                GridCell cell = GetCell(x, z);
                if (cell != null && cell.IsPotentiallyCoastal)
                {
                    count++;
                }
                else if (count > 0) // Stop counting once the run is broken
                {
                    break;
                }
            }
            return count;
        }

        #endregion

        private void PopulateDecor()
        {
            if (rockPrefab == null) return;
            var decorParent = new GameObject("Decor").transform;
            decorParent.SetParent(transform);

            for (int x = 0; x < width; x++)
            {
                for (int z = 0; z < height; z++)
                {
                    GridCell cell = grid[x, z];
                    if (cell.IsBuildable && !cell.IsCoastalCell) // Don't put rocks on the beach
                    {
                        if (Random.value < rockPlacementProbability)
                        {
                            Quaternion randomRot = Quaternion.Euler(0, Random.Range(0, 360f), 0);
                            cell.DecorObject = Instantiate(rockPrefab, cell.WorldPosition, randomRot, decorParent);
                        }
                    }
                }
            }
            Debug.Log("Decor populated.");
        }


        // --- Public Helper Methods ---
        public GridCell GetCell(int x, int z)
        {
            if (x >= 0 && x < width && z >= 0 && z < height)
                return grid[x, z];
            return null;
        }

        // ... Other methods for building placement, pathfinding, etc. would go here ...


#if UNITY_EDITOR
        void OnDrawGizmos()
        {
            if (grid == null) return;

            foreach (var cell in grid)
            {
                Gizmos.color = Color.green * 0.5f;
                // Simplified Gizmos for clarity
                if (!cell.IsBuildable)
                {
                    Gizmos.color = new Color(0, 0.7f, 1, 0.5f); // Water
                    Gizmos.DrawCube(cell.WorldPosition, new Vector3(cellSize, 0.1f, cellSize));
                }
                else if (cell.IsCoastalCell)
                {
                    Gizmos.color = new Color(1, 0, 1, 0.7f); // Magenta
                    Gizmos.DrawCube(cell.WorldPosition, new Vector3(cellSize, 0.1f, cellSize));
                    // Draw a line to show coastal rotation
                    Vector3 direction = Quaternion.Euler(0, cell.CoastalRotation, 0) * Vector3.forward;
                    Gizmos.DrawRay(cell.WorldPosition, direction * cellSize);
                }
            }
        }
#endif
    }
}

The GridCell
Each cell holds:

WorldPosition, TerrainHeight
IsBuildable, IsOccupied, OccupyingBuilding
RoadType, RoadVisualInstance
IsCoastalCell, CoastalRotation
DecorObject for procedural clutter

using UnityEngine;

namespace GridSystem.BlogPost
{
    public class GridCell
    {
        public Vector3 WorldPosition { get; }
        public Vector2Int GridPosition { get; }

        // --- Core Properties ---
        public bool IsBuildable { get; }
        public GameObject DecorObject { get; set; }

        // --- Coastal Properties ---
        public bool IsCoastalCell { get; set; } = false;
        public int CoastalRotation { get; set; } = 0;

        // --- Temporary Flags for Generation ---
        public bool IsPotentiallyCoastal { get; set; } = false;
        public bool WaterIsNorth, WaterIsSouth, WaterIsEast, WaterIsWest;


        public GridCell(Vector2Int gridPos, Vector3 worldPos, bool isBuildable)
        {
            GridPosition = gridPos;
            WorldPosition = worldPos;
            IsBuildable = isBuildable;
        }

        // Properties for occupancy, roads, pathfinding costs etc.
    }
}

This makes each tile aware of what it holds and how it behaves — a mini representation of the world.

Initialization with a Plan
I use Awake() to ensure the grid is fully ready before any other system starts querying it. Initialization is broken into multiple passes, which we’ll cover next.

Pass 1: Carving Out the Buildable World

The Terrain Challenge
Sampling the terrain height for each cell using raycasts:

if (Physics.Raycast(worldPos + Vector3.up * 100f, Vector3.down, out hit, 200f, groundLayerMask)) {
    heightSample = hit.point.y;
}

Then we determine buildability:

isCellBuildable = buildableHeightTolerance2 < Mathf.Abs(heightSample)
                 && Mathf.Abs(heightSample) < buildableHeightTolerance;

This avoids steep slopes and valleys, only allowing flat enough cells for construction. I keep count of how many cells are buildable for gameplay tuning.

Passes 2 & 3: Defining Coastlines

Why Coastlines Matter
Certain buildings in Andara — like Lizard Traps or future piers — require valid coastline access.

Pass 2 – Potential Coastal Cells
We flag a cell as TempIsPotentiallyCoastal if it’s buildable and adjacent to water (i.e., non-buildable and low terrain):

if (!neighborCell.IsBuildable && neighborCell.TerrainHeight < -buildableHeightTolerance)

Temporary flags like TempHasWaterNorth are set to help in the next step.

Pass 3 – Validating Coastal Runs
We ensure coastlines are usable by checking horizontal and vertical runs:

if (horizontalRun >= minCoastalRunLength) {
    cell.IsCoastalCell = true;
    cell.CoastalRotation = facingWater ? 180 : 0;
}

This avoids having one-off coastal cells that can’t fit larger buildings.

📸 Gizmo Tip: We draw magenta arrows in the editor to visualize coastal cells and their orientation.

Finding the Perfect Spot: FindRandomCoastalRun

Sometimes, we need to programmatically place a structure on the coast. FindRandomCoastalRun() lets us do that by:

Scanning for valid runs of a specific length.
Randomly picking one that fits.

We also optimize by only checking new run starts:

bool checkHorizontal = (x == 0 || !grid[x - 1, z].IsCoastalCell);

Making It Home: Occupancy, Roads, and Decoration

Marking Territory
To place buildings:

We use AreCellsValidForPlacement() to check for availability.
Then OccupyCells() marks the cells and stores a reference to the building.

Also update a FlatGrid:

FlatGird[index] = 2; // 2 means occupied

This structure helps with AI or large-scale queries without accessing MonoBehaviours.

Laying Roads
Road placement is checked with IsCellValidForRoad() and marked via RoadType and MarkRoad().

Procedural Decoration
Empty buildable tiles have a chance to spawn decor (e.g., rocks):

if (Random.value < rockPlacementProbability)

Adding random offsets and rotations to break repetition. Decor can be destroyed when a building is placed — it doesn’t block construction.

Under the Hood: Utility Functions & Debug Tools

We rely on helpers like:

GetCell(x, z)
WorldToGrid(Vector3 worldPos)
TryGetCellWorldPosition()

Gizmos: Our Debug HUD
Color-code cells based on state:

🟩 Buildable
🟨 Non-buildable (mountains)
🟦 Below buildable surface (Non-buildable)
🟥 Occupied
🟪 Coastal (Buildable only for coastal buildings)

Conclusion

Recap: We’ve built a grid system that:

Evaluates terrain height
Flags valid coastlines
Supports roads and decor
Offers clean data to other systems

I’d love to hear how other devs approach grid design. Let me know your thoughts.

The Unsung Hero of City-Builders

Core Structure: The GridSystemScript and GridCell

Pass 1: Carving Out the Buildable World

Passes 2 & 3: Defining Coastlines

Finding the Perfect Spot: FindRandomCoastalRun

Making It Home: Occupancy, Roads, and Decoration

Under the Hood: Utility Functions & Debug Tools

Conclusion

Designing Survival:

Beyond A-Move:

Comments are closed

A Deep Dive into a Dynamic Unity City Builder Grid System

The Unsung Hero of City-Builders

Core Structure: The GridSystemScript and GridCell

Pass 1: Carving Out the Buildable World

Passes 2 & 3: Defining Coastlines

Finding the Perfect Spot: FindRandomCoastalRun

Making It Home: Occupancy, Roads, and Decoration

Under the Hood: Utility Functions & Debug Tools

Conclusion

Tags:

Share:

Designing Survival:

Beyond A-Move:

Comments are closed
